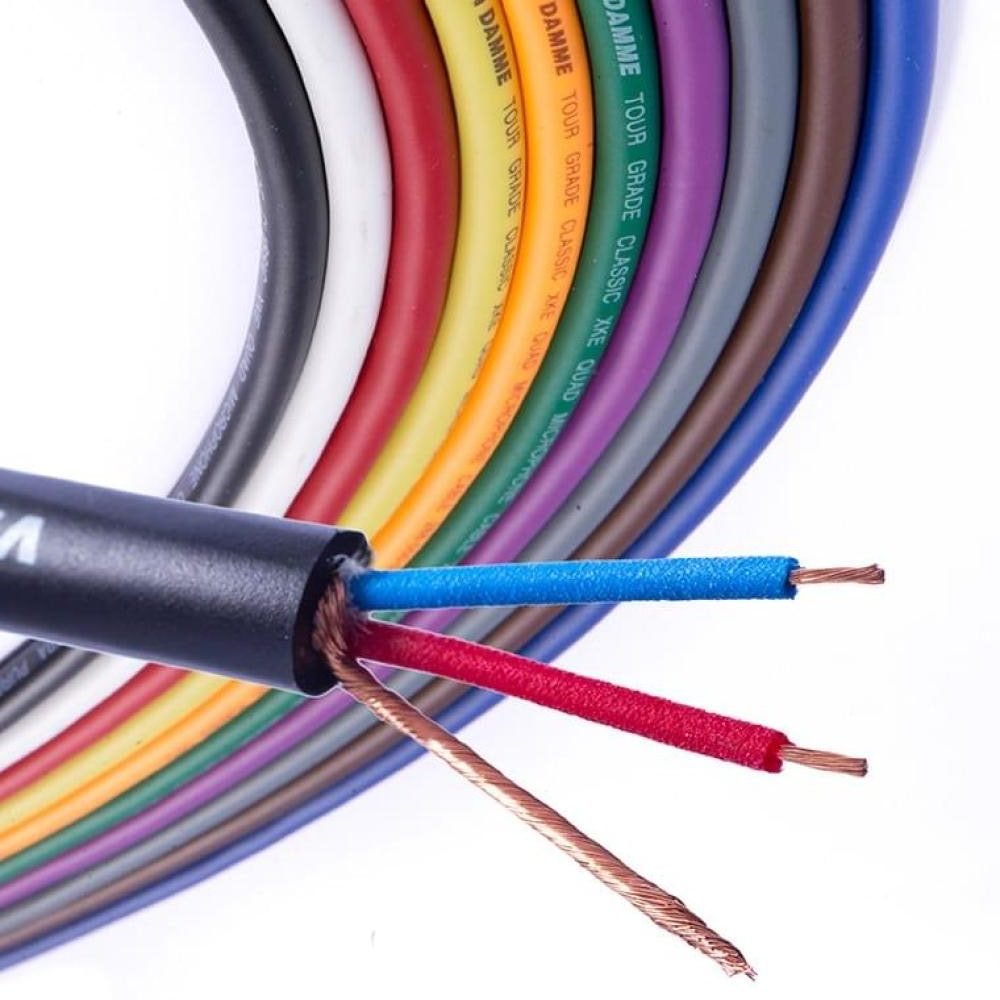

Van Damme Tour Grade Classic XKE Microphone cable combines flexibility, durability, noiseless operation and excellent handling characteristics. Now upgraded for this catalogue with more advanced PVC jacketing materials. Van Damme microphone cables can be found in film and recording studios, high street music shops, professional touring applications and the education sector.
Applications
- For mic and line-level analog balanced audio
- Tightly packed cotton fillers ensure no static build up and even capacitance.
- Ideal for on stage use.
Part Nos. & Description
| Part Number | Description | Color | Reel Lengths |
| 268-020-000 | Van Damme Tour Grade Classic XKE microphone cable jet black | Black | 100 m, 300 m |
Mechanical Specification
| Conductors | 7 x 0.10 mm bare silver-plated oxygen-free copper 21 x 0.10 mm bare ultra-pure oxygen-free copper |
| Conductor size | 28 x 0.10 mm, 0.22 mm2, AWG 24/28 |
| Insulation | Cross-linked polyethylene |
| Screen type(s) | 80 x 0.10 mm close lap spiral bare oxygen-free copper |
| Jacket material | Flexible PVC/Neoprene composite |
| Overall diameter | 6.35 ± 0.15 mm |
| Bend radius | 10 x overall diameter |
Electrical Specification
| Resistance | Conductor Insulation |
< 85 Ohm/km > 5000 MOhm/km |
| Capacitance | Core to core Core to screen |
46 pF/m 105 pF/m |
DOWNLOADS
Brand
Van Damme Cables
