Installation-friendly Dante-to-analog adapters for Pro AV integrators
Network Everything

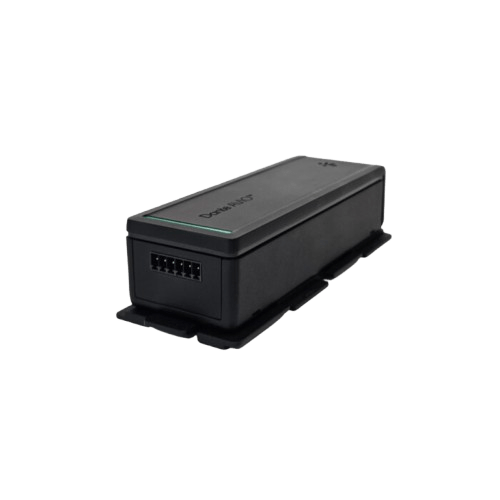

The Dante AVIO Install line of analog adapters seamlessly connects your analog audio gear to any Dante-enabled system, ensuring hassle-free interoperability, high performance, and scalability. Compact, cost-effective, and powered via PoE, these adapters are designed for flexibility and ease of use. Available in both input and output versions, each adapter delivers bit-perfect audio, ultra-low latency, and sample-accurate synchronization. Automatically discovered on the network and ready to use, Dante AVIO Install adapters provide a simple and affordable solution for integrating analog audio into modern Dante networks.
Part of the Dante Family
Dante AVIO Install adapters are part of the trusted Dante family of networked AV solutions, leveraging the familiar Dante control and management platform. Audio routing and configuration are managed through Dante Controller, while advanced features like instance management, user access control, cross-subnet routing, and API integration can be enabled with Dante Domain Manager or Dante Director.
Built for Installation
Tailored for the Pro AV installation market, the Dante AVIO Install line of adapters feature Euroblock terminals, making it easy to integrate with installed analog audio equipment. They also introduce the Dante AVIO ClickGrid mounting system, offering a clean and flexible solution for mounting under conference tables, shelves, or in equipment racks, with the ability to snap together multiple adapters.
– Applications
- Meeting Rooms:Integrate analog conference equipment into a Dante system for clear, high-quality audio in a single room or across multiple locations.
- Education:Link analog audio gear to a Dante network, enhancing sound reinforcement in classrooms, lecture halls, and auditoriums.
- House of Worship:Connect different areas of the church (sanctuary, fellowship hall, classrooms) for unified, high-quality sound distribution.
- Performance Venues:Quickly adapt the audio setup for different performances or events by routing sound to various zones (stages, audience areas, backstage).

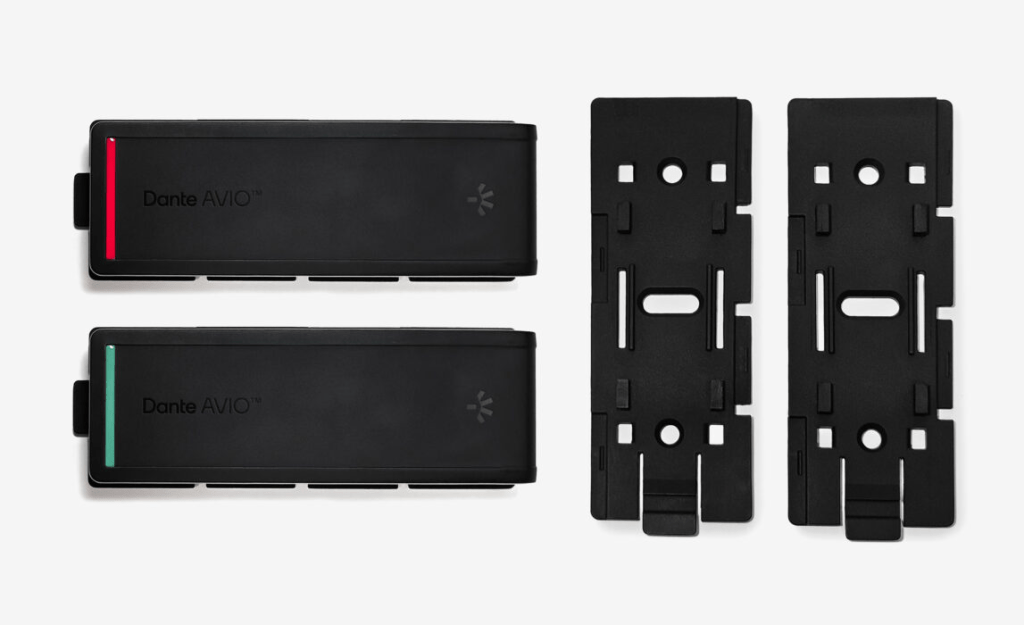

And also introducing the Dante AVIO ClickGrid mounting system, offering a clean and flexible solution for mounting under conference tables, shelves or in equipment racks, with the ability to accommodate one or multiple adapters snapped together.
Specifications
2-Channel Analog Input
- Connector Type: 6-pin Euroblock terminal, 3.5mm pitch
- Max Signal Level (Balanced): +4dBu / 0dBu / 0dBV / -10dBV
- Frequency Response: 20Hz to 20kHz (-/+0.2dB)
- Impedance: 20k Ohm balanced, 10k Ohm unbalanced
- Sample Rates: 44.1, 48, 88.2, 96 kHz
- Bit Depth: 16, 24, 32-bit PCM
- Dante Device Latency: 1, 2 or 5 ms
- Power: Class1 802.3af PoE
- Power Consumption: <2 watts
- Operating Temp: -10 to +45°C
- Part Number: AVIO-A-2IN-EB
- Mounting Options: Mounting Bracket (included)
| Connectors | RJ45 & USB Type A |
|---|---|
| Power | Class 1 802.3af PoE or USB |
| Sample Rates | 48 kHz |
| Bit Depths | 24 |
| Network Transport | Dante Audio over IP, AES67 RTP |
| USB | Class Compliant |
| Part Number | ADP-USB-AU-2X2 |
Brand
Audinate
