Up 6O is a discreet 6” ceiling speaker delivering consistent coverage and crisp, clear sound to a wide range of cost conscious, commercial environments from hotels and concourses to retail outlets, bars and restaurants.

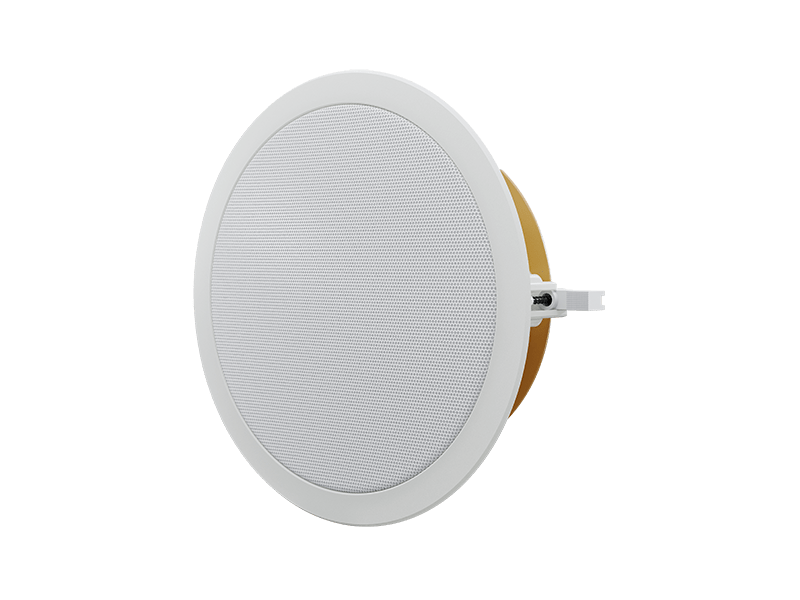

Up 6O is supplied without a back can for ceilings with a minimum cavity depth, while an integral fixing system is included to achieve a simple and clean installation. The steel perforated grille is finished in neutral white.

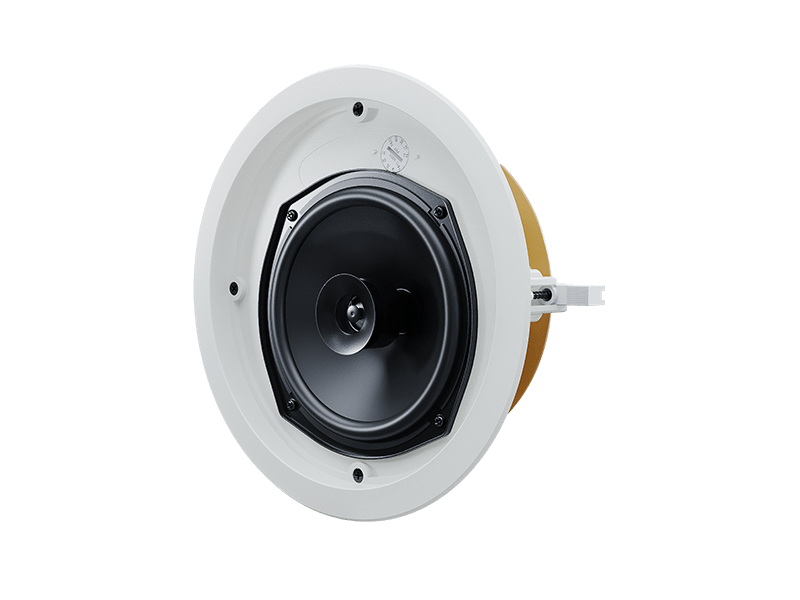

Up 6O features a 6” (162mm) low frequency driver paired with a 0.7” (20mm) metal dome tweeter. It is suitable for both high quality speech and music reproduction. A conical 110° coverage pattern delivers consistent, high performance sound where it needs to go.
Each Up 6O can be run on a series of 70 or 100 Volt taps or at low impedance. The 16 ohm setting allows up to four units to be connected to each amplifier channel at low impedance. Tap selection is via a rotary switch behind the removable grille.
SmartAmps or Zone will provide optimal performance and loudspeaker protection. When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.
Specifications
| TYPE | Two-way, full range, passive, ceiling speaker |
| FREQUENCY RESPONSE (with preset) |
65Hz to 18kHz ±3dB |
| DRIVERS | LF: 6.5” (162mm), Coated paper
HF: 1” (25mm) exit/ 0.7” (20mm) Metal dome |
| RATED POWER | 60W (AES) 120W (Peak) |
| NOMINAL IMPEDANCE | 16Ω |
| SENSITIVITY (1W/1m) | 90dB |
| MAXIMUM SPL | 108dB (cont), 111dB (peak) |
| CROSSOVER | 2.7kHz passive |
| RECOMMENDED HIGH-PASS FILTER | 24dB/octave @ 60Hz |
| TRANSFORMER TAPS @ 70V | 60, 30, 15, 7.5W |
| TRANSFORMER TAPS @ 100V | 60, 30, 15W |
| DISPERSION (-6dB) | 110˚ conical |
| BACK CAN | N/A |
| BAFFLE | ABS |
| PROTECTIVE GRILLE | Perforated steel |
| FIRE RATING | UL94-V0 |
| CONNECTORS | 4 Pin Euroblock with link out |
| FITTINGS | C-ring support backing plate |
| DIMENSIONS (inc. Grille) | (Ø) 251mm x (D)103.5mm
(Ø) 9.88” x (D) 4.1” |
| CUT-OUT DIAMETER | 222mm (8.74”) |
| WEIGHT |
2.24kg (4.94lb) |
Drawings
Accessories (included)
- 2 tile support rails (for 2 ft or 600 mm tile spans)
- cutout template
- paint shield
- removable locking multi-pin connector
