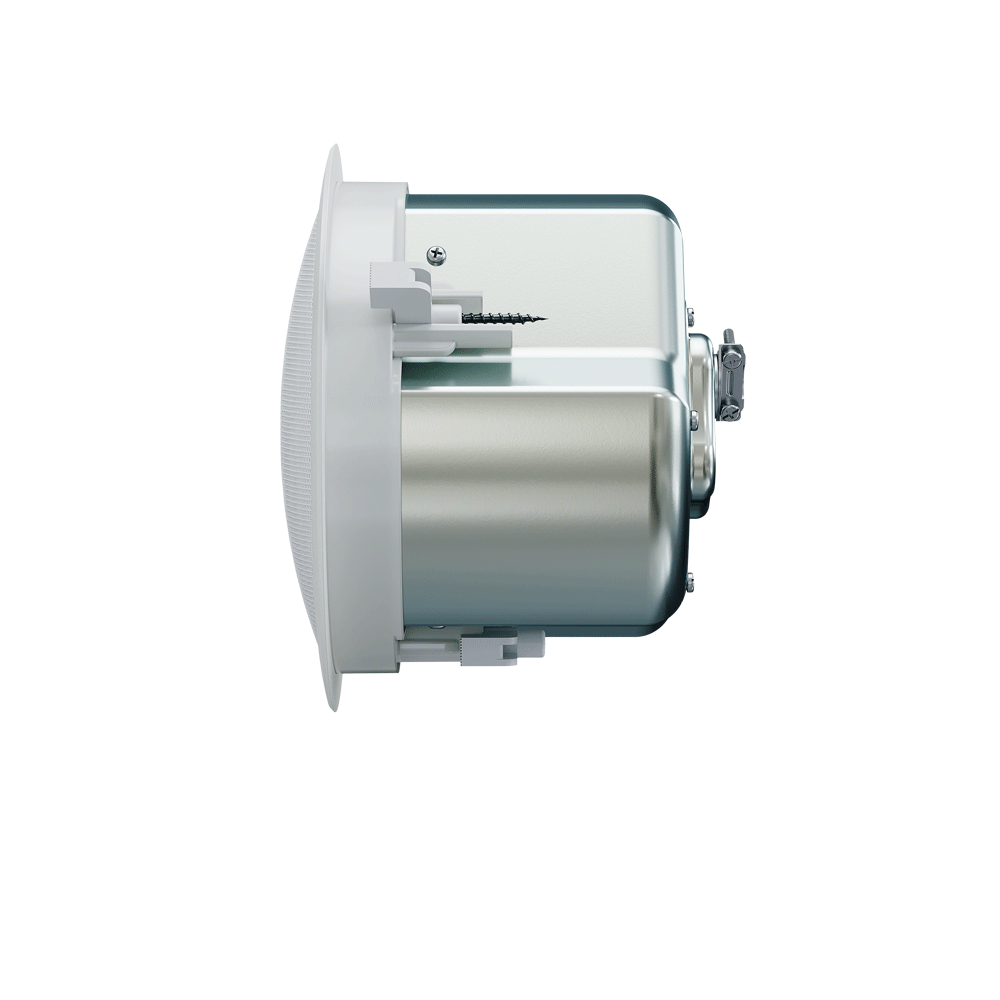

Up 3 is a discreet, passive, 3” ceiling speaker delivering consistent coverage and crisp, clear sound to a wide range of cost conscious, commercial environments from hotels and concourses to retail outlets, bars and restaurants.
An integral fixing system is included to achieve a simple and clean installation. Up 3 has a perforated steel grille and is finished in neutral white.
It features a 3” (78mm) driver which is ideal for both background music and speech reproduction. A conical 130° coverage pattern delivers consistent sound where it needs to go.
Each Up 3 can be run on a series of 70 or 100 Volt taps or at low impedance. Tap selection is via a rotary switch behind the removable grille.
SmartAmps or Zone will provide optimal performance and loudspeaker protection. When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.
Specifications
| TYPE | Full range, passive, ceiling speaker |
| FREQUENCY RESPONSE (with preset) | 95Hz – 15kHz ± 3dB -10dB @68Hz |
| DRIVERS | 3” (78mm), Coated paper |
| RATED POWER | 20W (AES) 40W (Peak) |
| NOMINAL IMPEDANCE | 8Ω |
| SENSITIVITY (1W/1m) | 84dB |
| MAXIMUM SPL | 97dB (cont), 100dB (peak) |
| RECOMMENDED HIGH-PASS FILTER | 24dB/octave @ 90Hz |
| TRANSFORMER TAPS @ 70V | 15, 7.5, 3.8, 1.9W |
| TRANSFORMER TAPS @ 100V | 15, 7.5, 3.8W |
| DISPERSION (-6dB) | 130˚ conical |
| BACK CAN | Zinc-plated Steel |
| BAFFLE | ABS |
| PROTECTIVE GRILLE | Perforated steel with cloth backing |
| FIRE RATING | UL94-V0 |
| CONNECTORS | 4 Pin Euroblock with link out |
| FITTINGS | C-ring support backing plate |
| DIMENSIONS | (Ø) 202mm x (D ) 165mm
(Ø) 7.95” x (D ) 5.7” |
| CUT-OUT DIAMETER | 178mm (7.01”) |
| WEIGHT | 1.6kg (3.5lbs) |
Drawings
Accessories (included)
- 2 tile support rails (for 2 ft or 600 mm tile spans)
- cutout template
- paint shield
- removable locking multi-pin connector
Brand
Optimal Audio
